New views on fixed nitrogen and other nutrients in crops and the environment

The five key threats of too much or too little nutrients

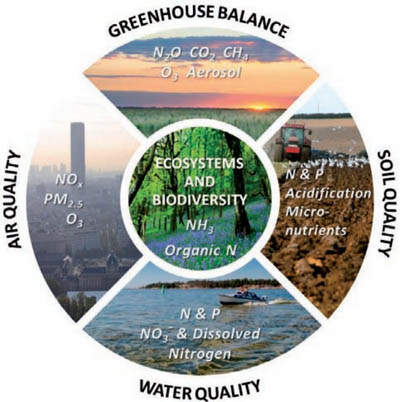

The five key threats of too much or too little nutrients. Figure ES1 from Sutton et al. “Our Nutrient World”

Two works have been published which substantially update long-standing views about nitrogen and crops. The first, Bender et al. (2013), points out that the whole nutrient balance of maize, and applications of NPK (nitrogen, phosphate and potassium) and micronutrients may well not have kept pace with their removal from fields – because of yield and harvest index – with modern varieties. While nitrogen (and NPK responses) are probably trialled regularly, other elements may not be. Their data show that a hectare of maize crop has no less than 286 kg of N, 202 kg of K2O, down to 80g of boron, and typically 60% of this is removed in the grain yielded by the crop. In the UK, a typical cereal crop would have c. 150 kg N /ha (, pretty much what is reported as being removed in this paper.

Bender, R. R., Haegele, J. W., Ruffo, M. L., & Below, F. E. (2013). Nutrient uptake, partitioning, and remobilization in modern, transgenic Insect-Protected maize hybrids. Agronomy Journal105 (1), 161+. URL (abstract below)

The second work gives a global overview of nutrient management and was published on 18 February 2013 as a report, Sutton et al.,  on behalf of the “Global Partnership on Nutrient Management and the International Nitrogen Initiative”. It concludes that “The world’s N and P cycles are now out of balance, causing major environmental, health and economic problems”, and, in agreement with Bender et al., “Insufficient access to nutrients still limits food production and contributes to land degradation in some parts of the world”. The report has a call to action as well: “A new global effort is needed to address ‘The Nutrient Nexus’, where reduced nutrient losses and improved nutrient use efficiency across all sectors simultaneously provide the foundation for a Greener Economy to produce more food and energy while reducing environmental pollution.” A clear cartoon of the nitrogen cycle is also given in the report, and is reproduced at /   : there has been some, although limited, discussion of the report in the blogosphere.

I’m been very suspicious for years of figures like “over 80% of Nitrogen is in fact lost to the environment through runoff, erosion, and greenhouse gas emissions”. Obviously, in a steady state, 100% of the nitrogen is eventually returned to the atmosphere, and unlike carbon, there are no gigantic long-term stores like limestone (calcium carbonate, CaCo3) or fossil fuels (coal, gas and oil). But the Bender et al. paper shows 60% is actually removed for food use!

Mark Sutton, the lead author, writes about aspects of the report at “We need nitrogen, but we need to manage it better. And really: every citizen needs to know nitrogen. Because until they do, the politicians will not be empowered to make decisions, and start taking the local, national and intergovernmental conversation to the next stage.”

The recommended of the citation is a snappy: Sutton M.A., Bleeker A., Howard C.M., Bekunda M., Grizzetti B., de Vries W., van Grinsven H.J.M., Abrol Y.P., Adhya T.K., Billen G.,. Davidson E.A, Datta A., Diaz R., Erisman J.W., Liu X.J., Oenema O., Palm C., Raghuram N., Reis S., Scholz R.W., Sims T., Westhoek H. & Zhang F.S., with contributions from Ayyappan S., Bouwman A.F., Bustamante M., Fowler D., Galloway J.N., Gavito M.E., Garnier J., Greenwood S., Hellums D.T., Holland M., Hoysall C., Jaramillo V.J., Klimont Z., Ometto J.P., Pathak H., Plocq Fichelet V., Powlson D., Ramakrishna K., Roy A., Sanders K., Sharma C., Singh B., Singh U., Yan X.Y. & Zhang Y. (2013) Our Nutrient World: The challenge to produce more food and energy with less pollution. Global Overview of Nutrient Management. Centre for Ecology and Hydrology, Edinburgh on behalf of the Global Partnership on Nutrient Management and the International Nitrogen Initiative. Download from or

Direct link for local users:

Literature citations:

Bender, R. R., Haegele, J. W., Ruffo, M. L., & Below, F. E. (2013). Nutrient uptake, partitioning, and remobilization in modern, transgenic Insect-Protected maize hybrids. Agronomy Journal105 (1), 161+.  URL

Modern maize (Zea mays L.) hybrids coupled with improved agronomic practices may have influenced the accumulation and partitioning of nutrient uptake since the last comprehensive studies were published. The objective of this study was to investigate nutrient uptake and partitioning among elite commercial germplasm with transgenic insect protection grown under modern management practices. Plants were sampled at six growth stages and divided into four fractions for nutrient determination. Total nutrients required per hectare to produce 23.0 Mg ha–1 of total biomass with 12.0 Mg ha–1 of grain included 286 kg N, 114 kg P2O5, 202 kg K2O, 59 kg Mg, 26 kg S, 1.4 kg Fe, 0.5 kg Mn, 0.5 kg Zn, 0.1 kg Cu, and 0.08 kg B. A 10-d period (V10–V14) denoted the maximum rates of accumulation on a per day basis for dry weight (439 kg), N (8.9 kg), P2O5 (2.4 kg), K2O (5.8 kg), Mg (2.2 kg), S (0.7 kg), Zn (14.2 g), Mn (18.0 g), B (3.3 g), Fe (95.3 g), and Cu (3.0 g). Th e majority of total uptake occurred post-flowering for P, S, Zn, and Cu. Harvest index values of P (79%), S (57%), Zn (62%), and N (58%) were identified in the grain. These results provide much needed data on the nutrient uptake and partitioning of current hybrids, and provide an opportunity to further refi ne fertilizer method and timing recommendations for maize biomass and grain production.
